Quality Engineering Solutions
Innovative Crane Systems for Modern Industries
Learn MorePremium Material Handling Equipment
Engineered for excellence, built for reliability
EOT Cranes
EOT CranesHEBENKRAFT designs and manufactures high-performance EOT Cranes for duty classes M5 to M8, in full compliance with the latest IS 3177 and IS 4137 standards. Engineered for heavy-duty, continuous, and critical material handling operations, our cranes are widely used across steel plants, cement plants, power plants, and other core industries.Our EOT Cranes are available with lifting capacities up to 200 Tons and spans up to 40 meters, and are fully customized to meet specific operational and site requirements. Designed for smooth operation, high reliability, extended service life, and enhanced safety, these cranes deliver consistent performance even under the most demanding working conditions.Double Girder EOT CranesHEBENKRAFT offers Double Girder EOT Cranes with lifting capacities ranging from 5 Tons to 200 Tons, making them ideal for: Storage yards, Machine shops, Heavy fabrication shops, High-duty industrial applicationsThese cranes are built with robust girders, precision-aligned components, and advanced control systems to ensure superior load handling efficiency and structural strength.Project HighlightsAluminum Slab Handling Crane – MaharashtraHEBENKRAFT’s Double Girder EOT Crane, specifically designed for efficient aluminum slab handling, is successfully installed at a leading aluminum manufacturing plant in the Taloja Industrial Area, Maharashtra. The crane ensures smooth, safe, and efficient material movement within the facility.15 Ton × 38 Meter Span Circular Electromagnet Crane – OdishaHEBENKRAFT designed, manufactured, and supplied a 15 Ton × 38 Meter Span Double Girder EOT Circular Electromagnet Crane for a semi-government steel plant at Duburi, Odisha. The crane was developed for efficient pig casting handling and wagon loading operations, enabling safe and reliable transfer of pig cast materials to storage yards.Equipped with a high-performance circular electromagnet, the crane ensures fast, secure, and efficient handling of pig castings under demanding steel plant operating conditions. The design and drawing approvals, along with the final inspection, were conducted by MECON, Ranchi, a reputed third-party inspection agency.HEBENKRAFT has also supplied similar heavy-duty circular electromagnet cranes to Steel Authority of India Limited (SAIL) for their Rourkela and Burnpur Steel Plants, demonstrating strong expertise in magnet crane solutions for steel industry applications.With a proven track record in delivering high-capacity, precision-engineered lifting solutions, HEBENKRAFT continues to be a trusted partner for advanced EOT Crane systems across India’s core industrial sectors.
View Details

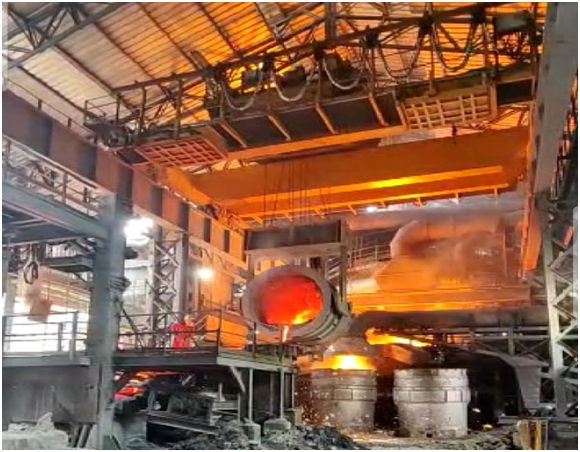

Hot Metal Ladle Cranes
HEBENKRAFT provides Hot Metal Ladle (production) cranes to work in high ambient temperatures for PIP Plants for continuous steel plant duty applications Class – 4 as per IS : 4137.Molten Metal being poured by HEBENKRAFT make Hot Metal Ladle crane into the pig casting moulds under class 4 continuous duty application at a well known steel plant. Hot Metal Ladle (production) cranes to work in high ambient temperatures for steel making plants for continuous steel plant duty applications Class – 4 as per IS : 4137.
View Details
Grab Buckets & Grab Bucket Cranes
HEBENKRAFT designed and manufactured a 7.5 Ton EOT Four-Rope Grab Bucket Crane equipped with a 3 Cu.M clamshell-type, four-rope operated mechanical grab bucket for handling materials with high bulk density. The crane is installed at a reputed PIP Steel Plant in Goa for slag removal from the Slag Granulation Pit (SGP), where hot wet slag is efficiently handled and loaded into dumpers. This type of grab crane is ideally suited for handling materials that cannot be managed using conventional ‘C’ hook cranes.
View Details

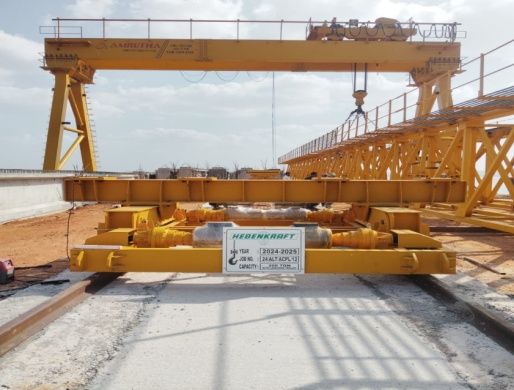

Launching Systems for Pre-Cast Girders Type I
HEBENKRAFT designed, manufactured, and supplied a 100 Ton × 17.5 m Gantry Crane with an integrated I-Casting Girder Launching System for M/s Amrutha Constructions Pvt. Ltd., Karnataka (2024). The scope of supply included a 100 Ton gantry crane, a spreader beam for lifting I-casting girders, two separate 50 + 50 MT I-girder casting transport trolleys, two auto-launching trolleys, two hoisting trolleys, and associated structural trusses.The launching operation was successfully executed at Hosadurga, Karnataka, across a river span of approximately 1 km. The system was designed to ensure safe and controlled movement of girders from the casting yard to the launching position. Girders were first lifted using the gantry crane and spreader beam, transferred via transport trolleys, and then positioned accurately using auto-launching and hoisting trolleys, enabling precise placement over the river span. The entire launching process was carried out smoothly, ensuring alignment accuracy, operational safety, and efficiency throughout the bridge construction project.
View Details

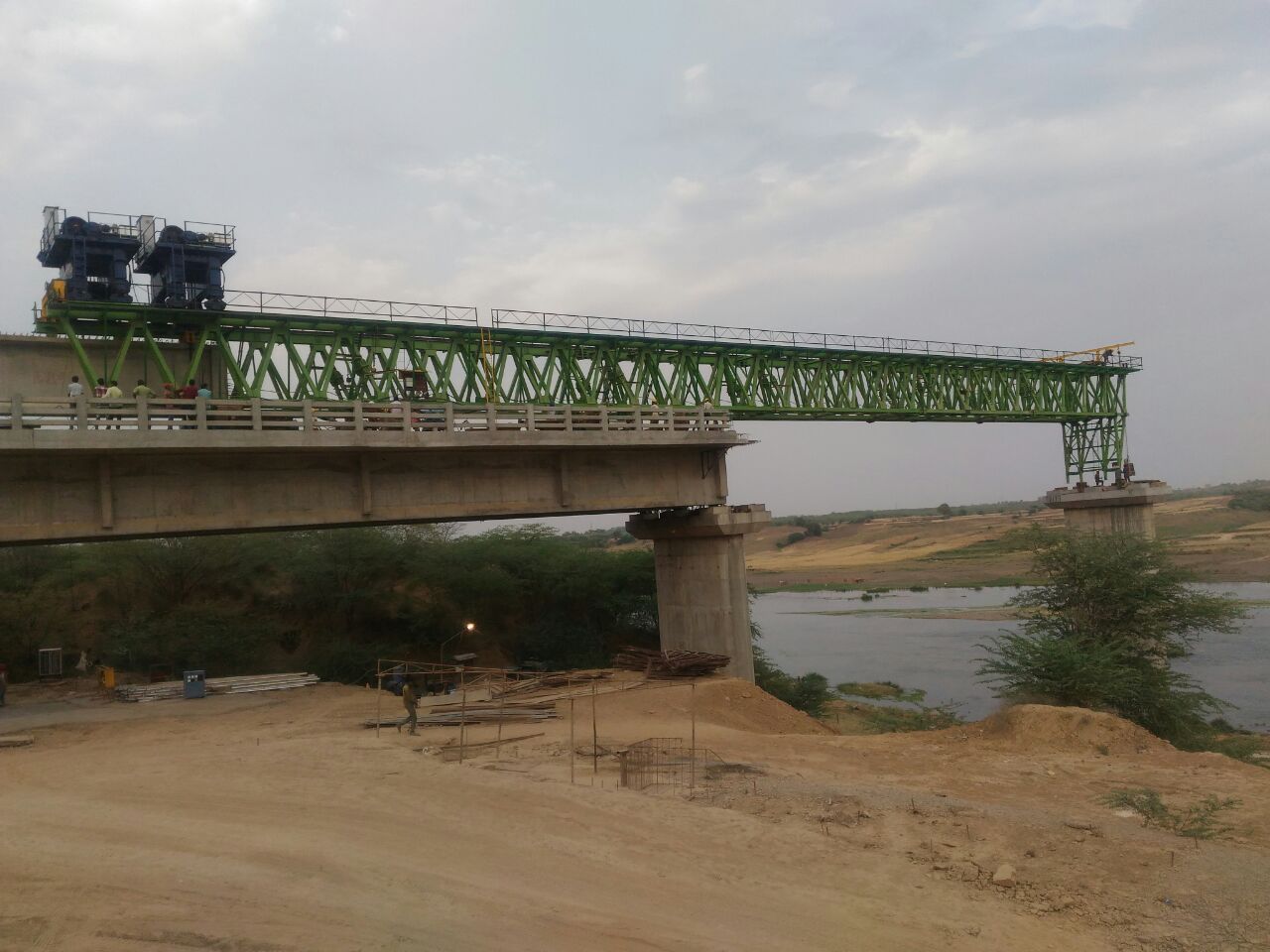

Launching Systems for Pre-Cast Girders Type II
Below is a river bridge being built in Gujarat with the I-Girder Launching methodologyIn River Bridge building applications at the launching location HEBENKRAFT provides steel fabricated Launching Truss which is generally 1.6 to 2 times the span length. On the top portion of the truss Hoisting Trolleys which can also be called Launching Trolleys are provided to lift the pre-cast girders. The front side of the truss is projected over the water area and its front portion is rested on the pier top. The Hoisting Trolleys travel on the top of the truss and take the pre-cast girder ahead over the water area towards the piers for launching. The girder is then counter balanced and lowered on the piers with due respects to the alignment and centre distances required. The side shifting is done manually through a hydraulic system. After launching a particular span, we provide an Auto launching system for the entire truss to travel on the launched girders and move forward towards the next consecutive span to be launched. The launching cycle gets repeated till completion of launching of all the spans. The bride building project can be executed speedily compared to the conventional systems due to the automated and motorized system provided. This system is speedy in completion of the bridge building projects over the old conventional
View Details

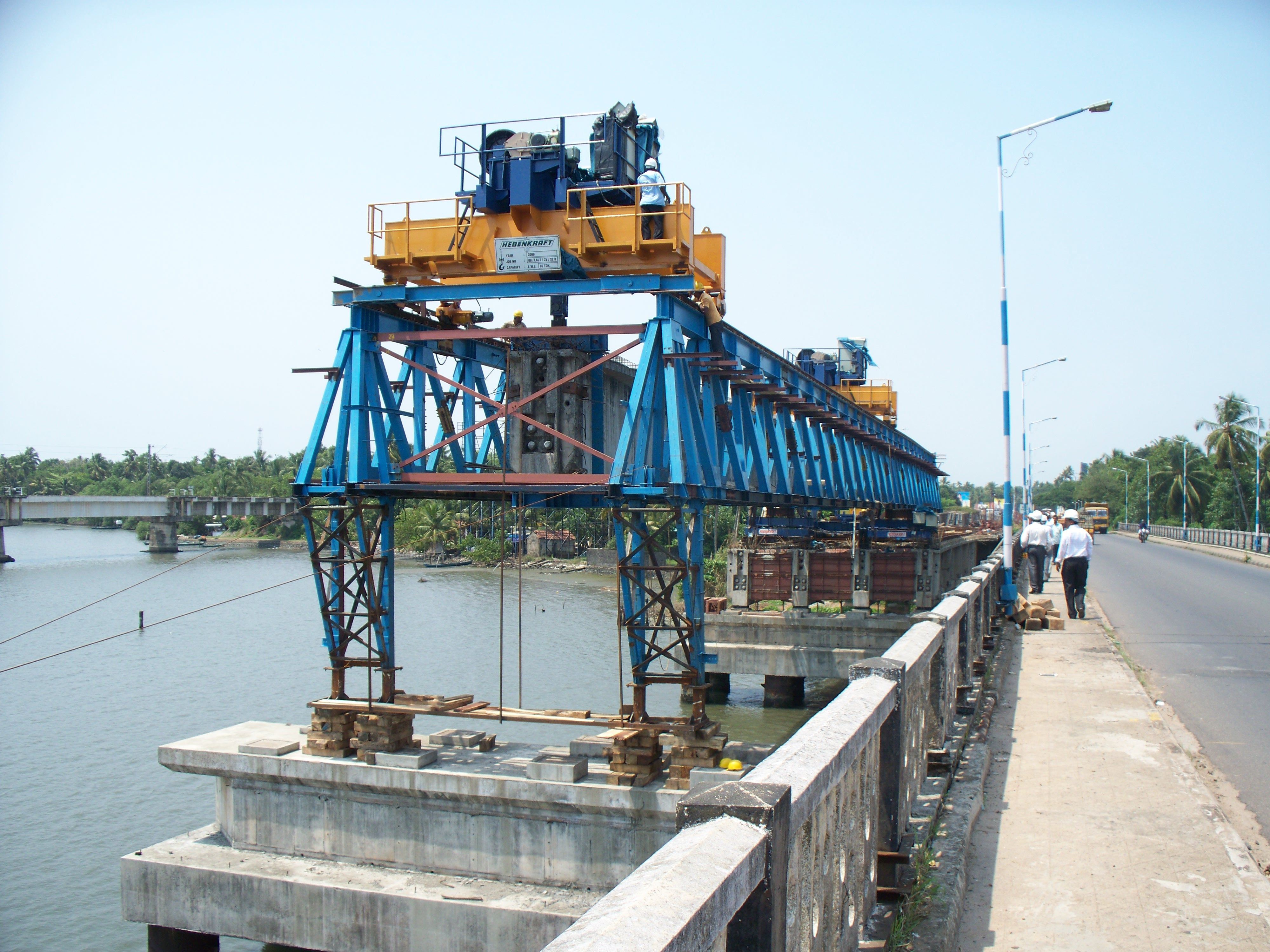

Launching Systems for Pre-Cast Girders Type III
170MT capacity Launching girder system with 85MT each Hoisting trolleys designed, manufactured & supplied by HEBENKRAFT over a river near Kochi in Kerala state. The two trolleys hold the pre-cast I –girder, they travel over the top of the launching truss and take it to the launching location over the bridge piers. The girder is then lowered and mounted on the pier cap. Side shifting manually through a hydraulic system.
View Details

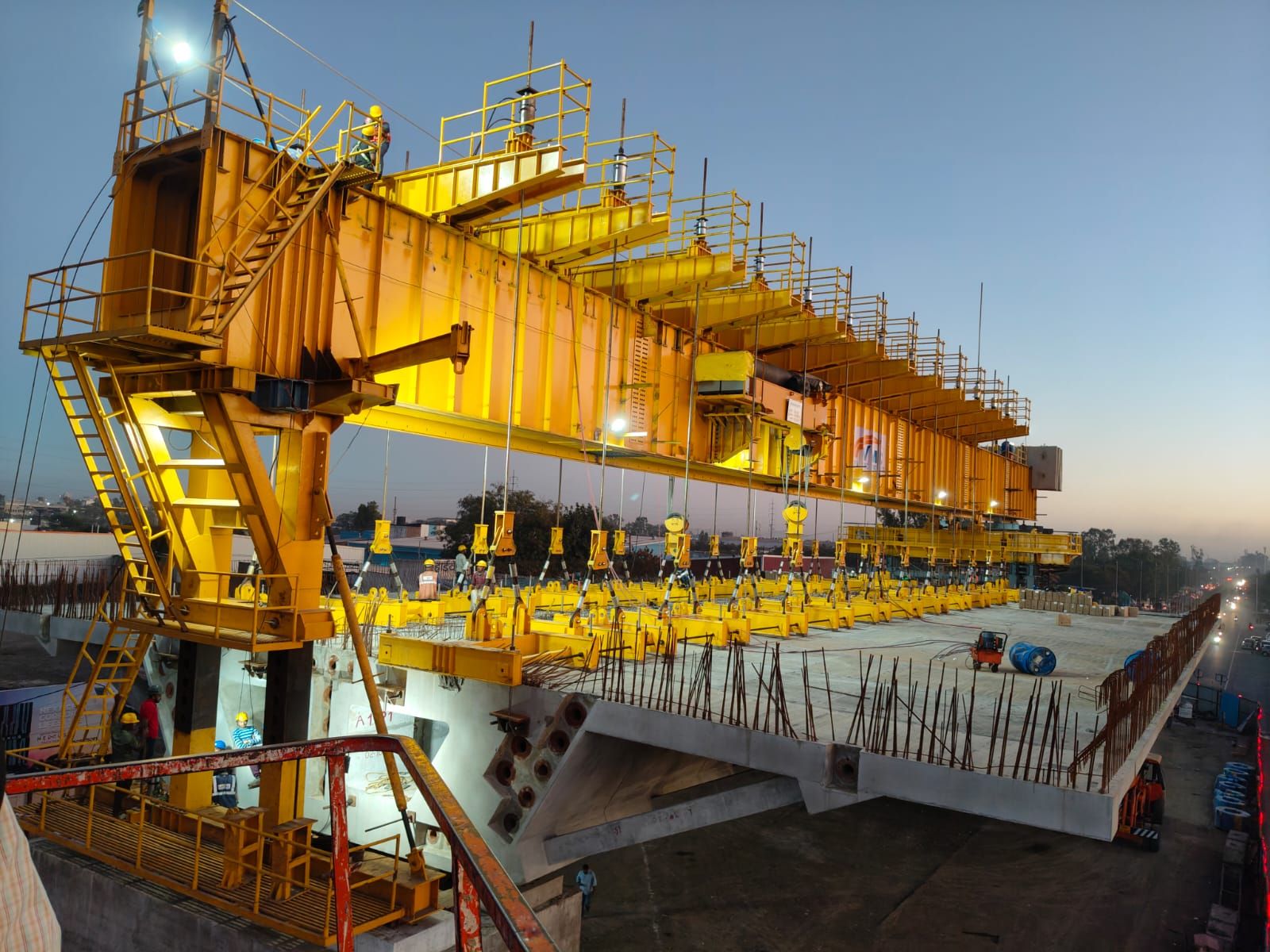

Launching Systems for Pre-Cast Girders Type IV
For Segmental Launching HEBENKRAFT provided a 200MT fabricated Launching truss with segment holding trolleys on the top of the truss. The company has supplied Launching Truss with Segment Holding Trolleys on the top. With the help of a heavy duty under-slung electric hoist the segments are lifted and fed to the trolleys which hold the segments with wire ropes. Cable stressing, gluing, fixing, dry matching is done at site. Finally cable staying is done to complete a particular span length. After completion of each segmental span, the truss moves forward to execute the next consecutive span in the launching chain.
View Details

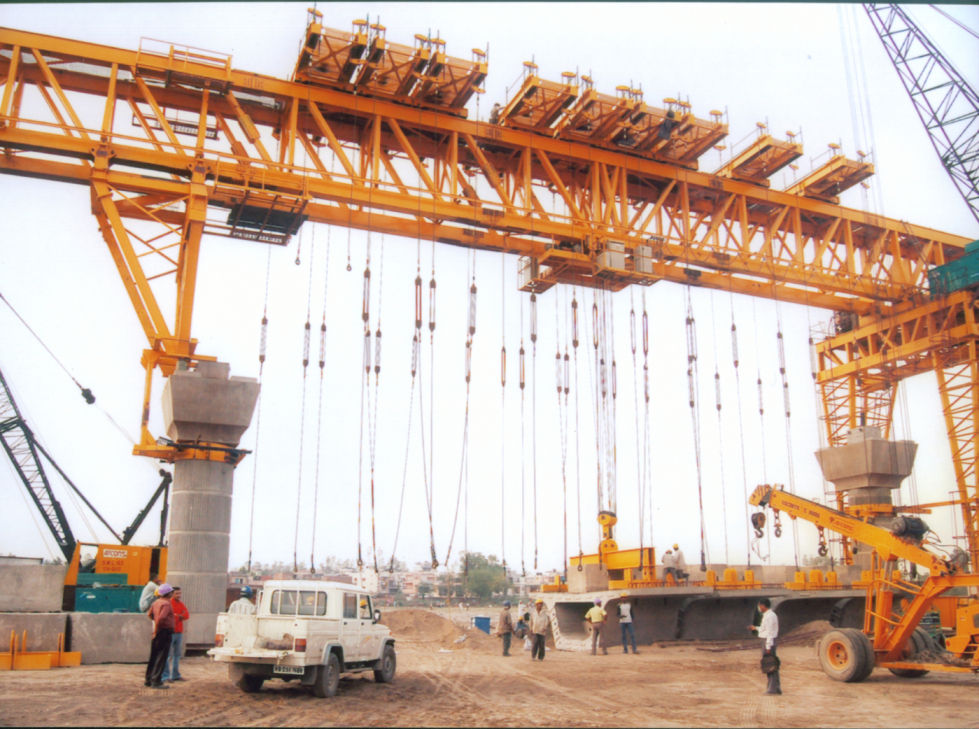

Launching Systems for Pre-Cast Girders Type V
Segmental launching was carried out for Delhi Metro Corporation with the equipment designed, manufactured and supplied by HEBENKRAFT Each C segment weight was 50MT. Segment holding trolleys 15 Nos were supplied were mounted on the top of the launching truss. Each top trolley is also motorized to move on the top of the truss. 60MT capacity under slung electric wire rope hoist is provided below the truss to lift each segment and feed it to the trolley above. Then each trolley holds the segments in one span. Thereafter activities of cable stressing, gluing, fixing, dry matching of all segments are done. After completion of one span, the entire truss moves forward through a motorized auto-launching system to follow the similar protocols for the next consecutive span.
View Details
Leading Material Handling Solutions Since 1985
Four decades of engineering excellence, delivering custom-built heavy equipment solutions
Founded on 1st July 1985, HEBENKRAFT is an ISO 9001:2015 certified organization with decades of proven experience in delivering custom-engineered heavy equipment and material handling solutions.
We specialize in the design, manufacturing and supply of EOT Cranes, Grab Cranes, Grab Buckets, Magnet Cranes, Gantry and Goliath Cranes, Electric Hoists, Launching Systems for Pre-Cast Girders, Capstans and Winches, and Barge Un-Loaders.
End-to-End Solutions
Complete in-house engineering, manufacturing & commissioning
Custom Engineering
Tailored solutions for unique industrial requirements
Proven Track Record
Trusted partner across core industries since 1985
WHY CHOOSE US
In-house Design & Manufacturing
Complete control over quality and delivery with our in-house engineering capabilities
Proven Industry Experience
39+ years of excellence serving core industries with reliable solutions
Quality & Safety Compliance
ISO 9001:2015 certified with rigorous quality inspection and testing
Custom-Built Solutions
Tailored engineering solutions designed for your unique requirements
What Our Clients Say
Trusted by industry leaders across India for delivering excellence in material handling solutions

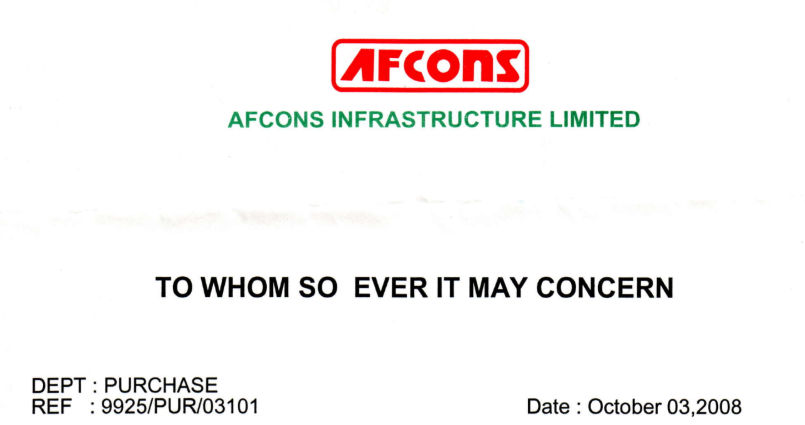

"Outstanding service and exceptional quality! The team delivered beyond our expectations. Their attention to detail and commitment to excellence is truly remarkable. Highly recommended for anyone looking for professional industrial solutions."
Afcons India Ltd
Asst. GM - Purchase

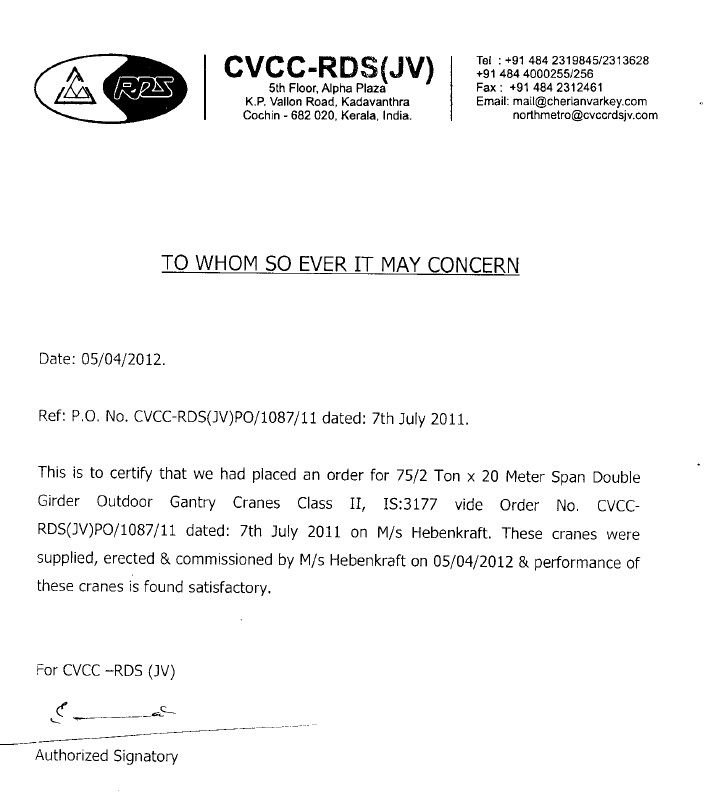

"We purchased a 75/2 Ton x 20 Meter Span Double Girder Outdoor Gantry Crane from Hebenkraft. The crane was successfully supplied, erected, and commissioned on 5th April 2012, and its performance has been reliable and satisfactory. We appreciate Hebenkraft’s quality workmanship and professional execution."
CVCC-RDS(JV)
Operations

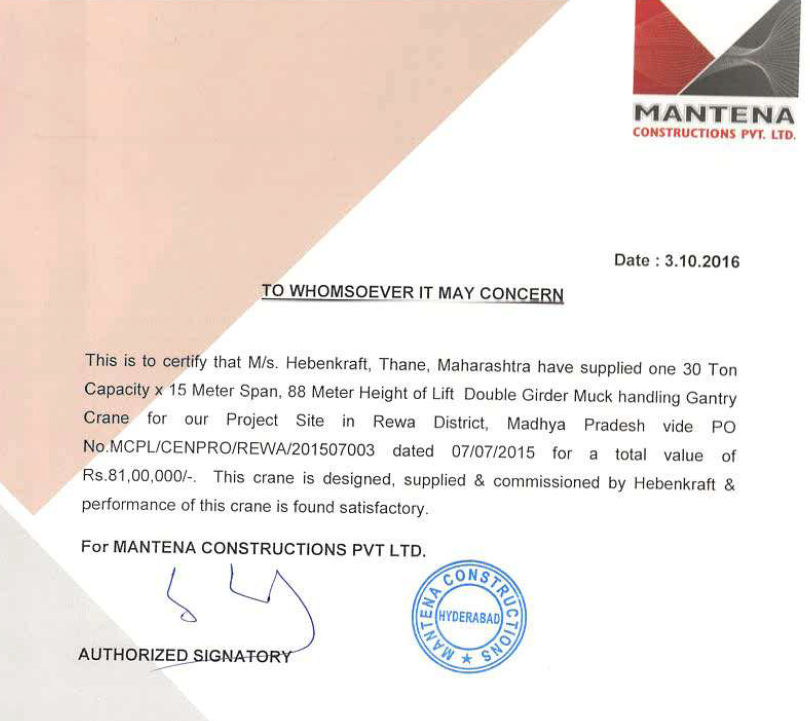

"Hebenkraft supplied and commissioned a 30 Ton Capacity Double Girder Muck Handling Gantry Crane for our project site in Rewa, Madhya Pradesh. The crane has been performing reliably, and we are satisfied with its quality and overall performance"
MANTENA CONSTRUCTIONS PVT. LTD.
Executive

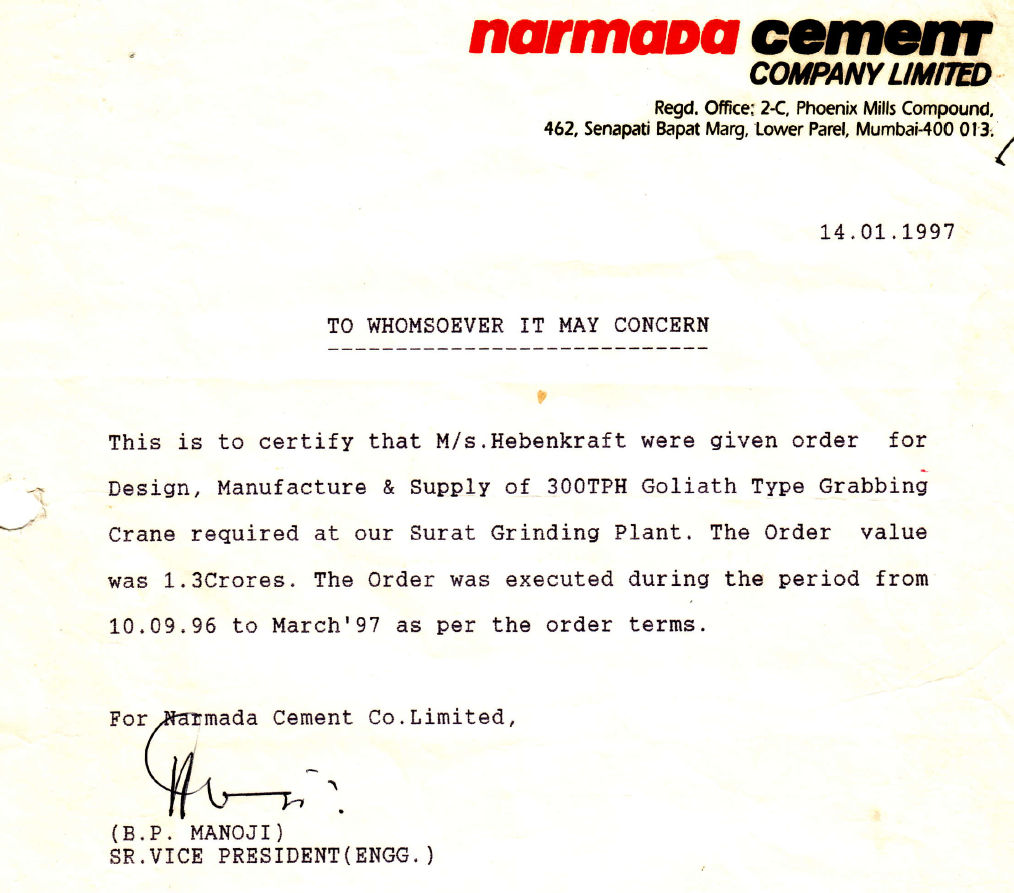

"Hebenkraft successfully designed, manufactured, and supplied a 300 TPH Goliath Type Grabbing Crane for our Surat Grinding Plant. The project was executed as per the order terms, and we are satisfied with the quality and performance delivered."
Narmada Cement Company Ltd
SR.VICE PRESIDENT (ENGG.)

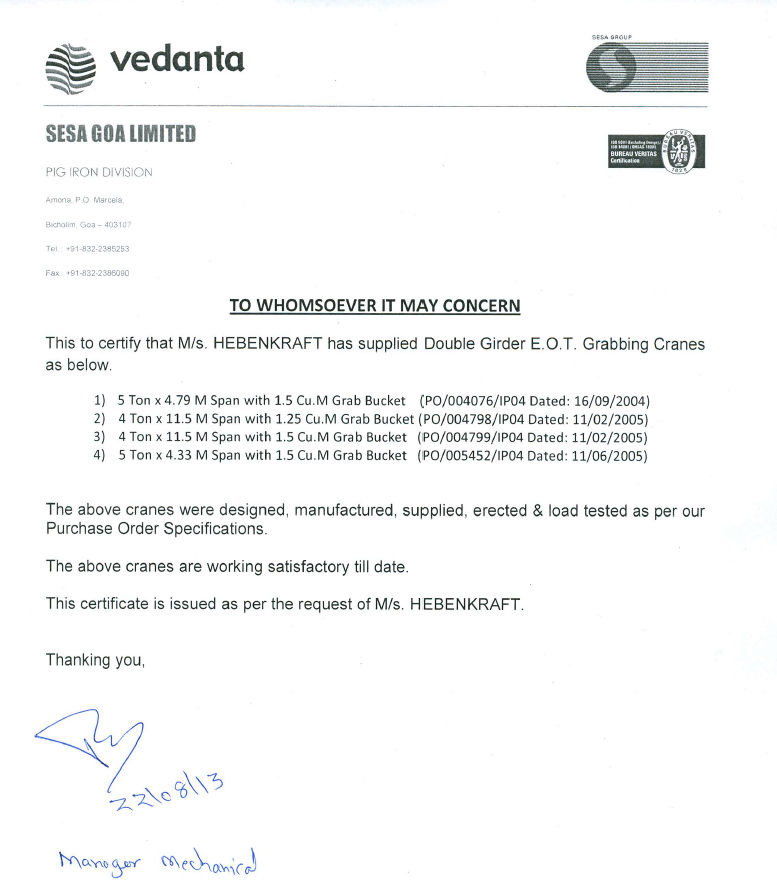

"This to certify that M/s. HEBENKRAFT has supplied Double Girder E.O.T. Grabbing Cranes, cranes were designed, manufactured, supplied, erected & load tested as per our Purchase Order Specifications. The above cranes are working satisfactory till date."
SESA GOA LIMITED
Manager mechanical
Featured Projects
Delivering excellence across industries with custom-engineered material handling solutions
Transit Mixer Trolley
Transit Mixer TrolleyConcrete Mixer Truck carrying Transport TrolleysHEBENKRAFT has designed, manufactured and supplied concrete mixer carrying 50MT capacity Transport trolley to Western Railway’s DFCC project for Vaitarna river bridge expansion project. 160 Ton Goliath Crane HEBENKRAFT designed & manufactured 160MT capacity x 24m span, 13.5m Height of lift Double Girder Gantry Goliath Cranes for handing 300MT pre-cast girders with spreader beams in electro-mechanical tandem operation. The long travel of this crane was 4 Km.Barge UnloadeHEBENKRAFT Grabbing Barge Un-loader is a huge machine used to unload cement clinkers, iron ore and similar type of material from offshore jetty barges or small ships. This un-loader has the capacity to unload 300TPH of material from barges with total material weighing 2500 to 3000Tons per ship. The un-loader has a cantilever luffing boom which luffs up/down and is extended out from the edge of the jetty over the barge or ship. The luffing operation has been provided for negotiating the height of the ship or a barge and for preventing any accidental occurrence of the ship/barge from fouling with the cantilever boom. A high speed travelling grab bucket travels to the end of the cantilever boom. It is then lowered down into the barge to gather the material (clinkers or iron ore) and is then hoisted at high speed. It travels right up to the top of a hopper in which the material gets unloaded when the grab bucket opens. This is a 4 rope operated clamshell type grab bucket and is at par with German design technology.
READ MORE
60/10 Ton Triple Girder Hot Metal Ladle Crane (10.5 m Span, 7 m Lift
Hot Metal Ladle CraneHEBENKRAFT designs and supplies Hot Metal Ladle Cranes for continuous steel plant production operations. These cranes are engineered to operate safely in high ambient temperature conditions and are suitable for Class 4 duty as per IS: 4137.Key Details:• Capacity: 60/10 Ton• Type: Triple Girder Design• Span: 10.5 m• Lift: 7 mApplication:Used for handling and pouring molten metal into pig casting moulds, ensuring safe, smooth, and reliable operation in demanding steel plant environments.
READ MORE

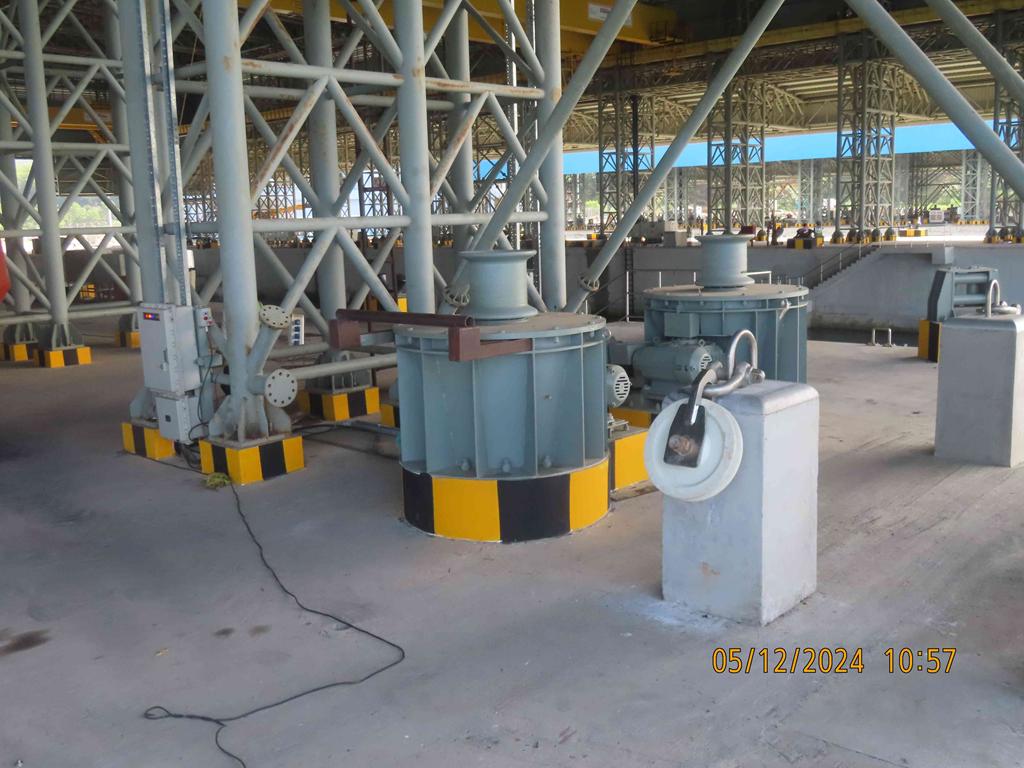

10 Ton Electric Capstan with Fairlead & Tackle Arrangement
Electric Capstans, Fairleads & Tackle ArrangementsFor Shipyards & Naval DocksHEBENKRAFT designs, manufactures, and supplies 10 MT capacity Electric Capstans along with 27 Fairleads and 20 Tackle Arrangements for shipyards and naval dock applications, used for controlled pulling, guiding, and positioning of large ships and submarines during berthing and parking operations. As part of the Indian Navy’s prestigious Seabird Project at Karwar.The Fairleads are used to guide the ropes safely, while the Tackle Arrangement changes the rope direction as required, working in coordination with the Capstan pulling system. This integrated and customized system was a unique requirement of the Indian Navy and was successfully executed by HEBENKRAFT.All design, drawing approvals, and inspections were carried out by M/s AECOM, Karwar.
READ MOREOur Key Clients
Ready to Elevate Your Material Handling?
Get in touch with our experts for customized solutions tailored to your industrial needs. We're here to help you achieve operational excellence.
Omega Business Park, Thane - West, Maharashtra
