Transit Mixer Trolley

Transit Mixer Trolley

Concrete Mixer Truck carrying Transport Trolleys

HEBENKRAFT has designed, manufactured and supplied concrete mixer carrying 50MT capacity Transport trolley to Western Railway’s DFCC project for Vaitarna river bridge expansion project.

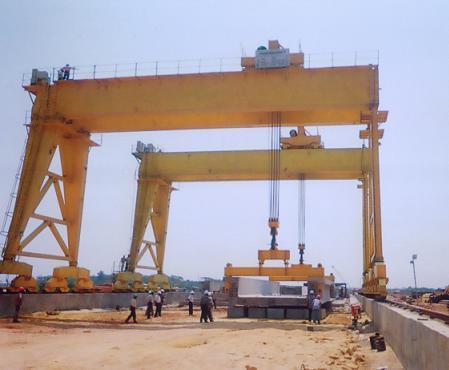

 160 Ton Goliath Crane

HEBENKRAFT  designed & manufactured 160MT capacity x 24m span, 13.5m Height of lift Double Girder Gantry Goliath Cranes for handing 300MT pre-cast girders with spreader beams in electro-mechanical tandem operation. The long travel of this crane was 4 Km.

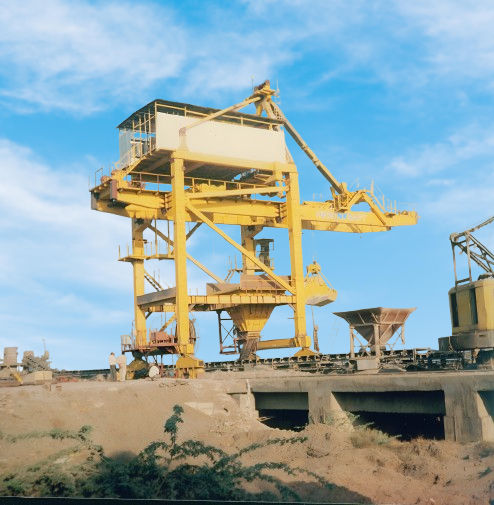

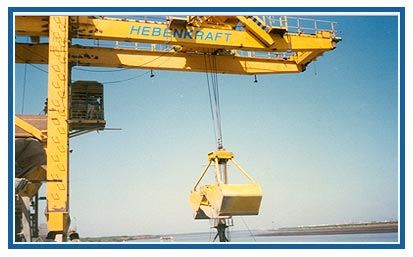

Barge Unloade

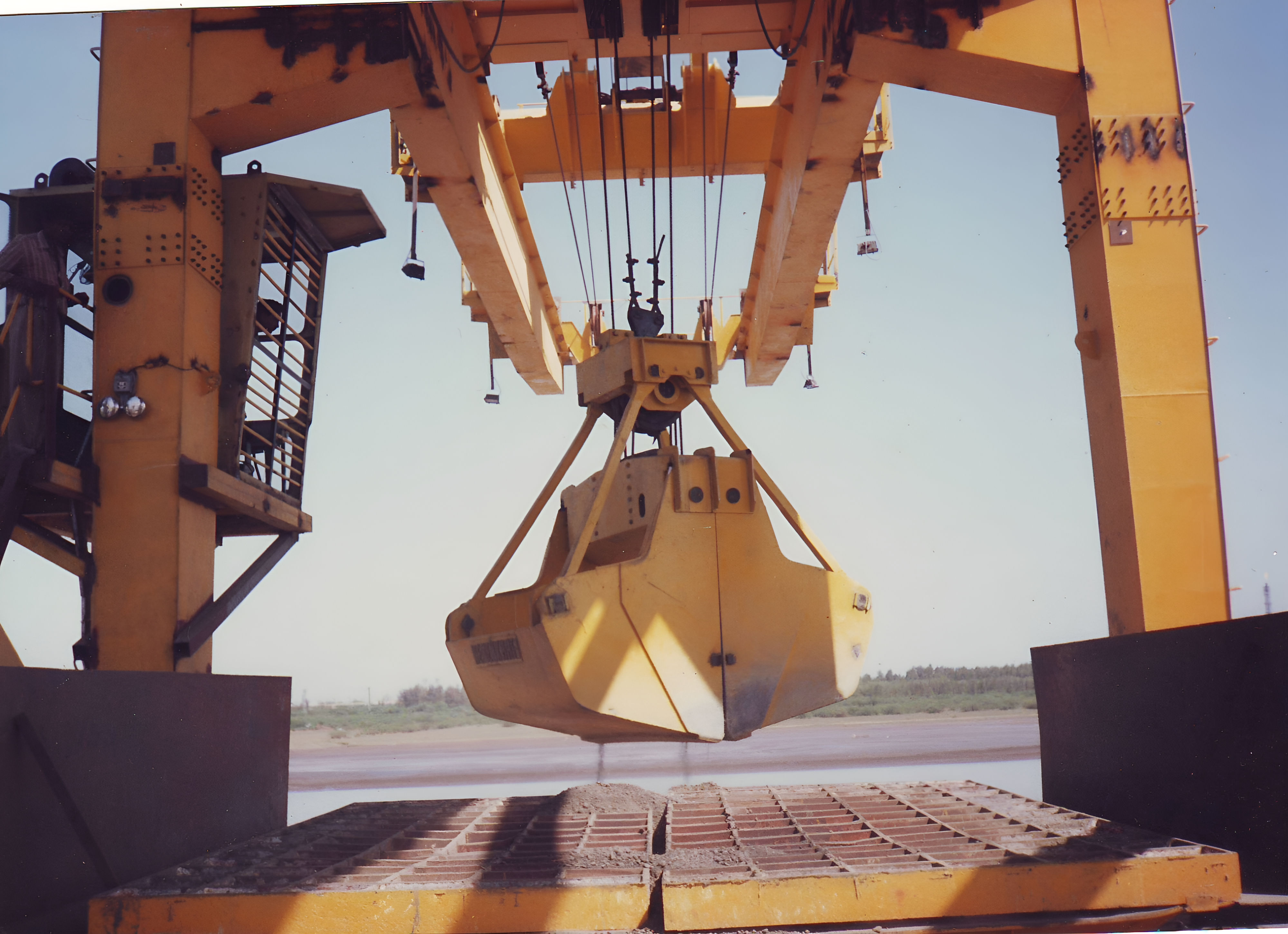

HEBENKRAFT Grabbing Barge Un-loader is a huge machine used to unload cement clinkers, iron ore and similar type of material from offshore jetty barges or small ships. This un-loader has the capacity to unload 300TPH of material from barges with total material weighing 2500 to 3000Tons per ship. The un-loader has a cantilever luffing boom which luffs up/down and is extended out from the edge of the jetty over the barge or ship. The luffing operation has been provided for negotiating the height of the ship or a barge and for preventing any accidental occurrence of the ship/barge from fouling with the cantilever boom. A high speed travelling grab bucket travels to the end of the cantilever boom. It is then lowered down into the barge to gather the material (clinkers or iron ore) and is then hoisted at high speed. It travels right up to the top of a hopper in which the material gets unloaded when the grab bucket opens. This is a 4 rope operated clamshell type grab bucket and is at par with German design technology.
