Launching Systems for Pre-Cast Girders Type V
Launching Systems for Pre-Cast Girders Type V
Segmental launching was carried out for Delhi Metro Corporation with the equipment designed, manufactured and supplied by HEBENKRAFT Each C segment weight was 50MT. Segment holding trolleys 15 Nos were supplied were mounted on the top of the launching truss. Each top trolley is also motorized to move on the top of the truss. 60MT capacity under slung electric wire rope hoist is provided below the truss to lift each segment and feed it to the trolley above. Then each trolley holds the segments in one span. Thereafter activities of cable stressing, gluing, fixing, dry matching of all segments are done. After completion of one span, the entire truss moves forward through a motorized auto-launching system to follow the similar protocols for the next consecutive span.
More For Infrastructure Projects
Discover our complete range of premium solutions
Launching Systems for Pre-Cast Girders Type I
HEBENKRAFT designed, manufactured, and supplied a 100 Ton × 17.5 m Gantry Crane with an integrated I...
Launching Systems for Pre-Cast Girders Type II
Below is a river bridge being built in Gujarat with the I-Girder Launching methodologyIn River Brid...
Launching Systems for Pre-Cast Girders Type III
170MT capacity Launching girder system with 85MT each Hoisting trolleys designed, manufactured &...
Launching Systems for Pre-Cast Girders Type IV
For Segmental Launching HEBENKRAFT provided a 200MT fabricated Launching truss with segment holding...

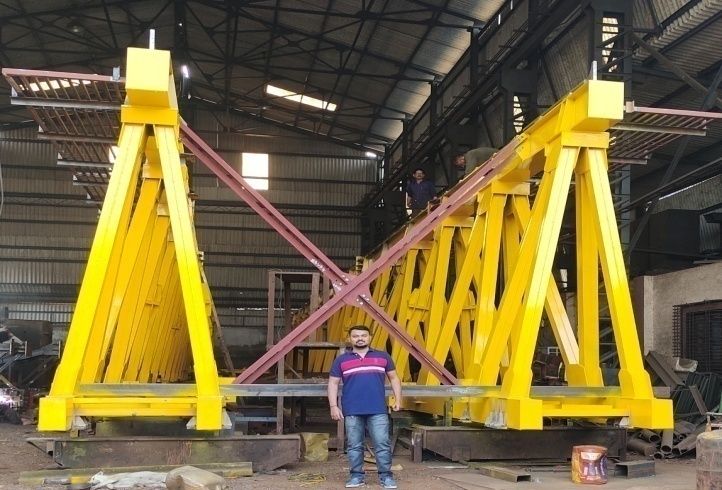

Launching Systems for Pre-Cast Girders Type VI
Fabricated Launching TrussHEBENKRAFT designs, manufactures, and supplies Launching Systems for Pre-C...
Hoisting Trolleys
HEBENKRAFT Hoisting trolleys are used in infrastructure projects for carrying the pre-cast girders....
Auto-Launching Trolleys

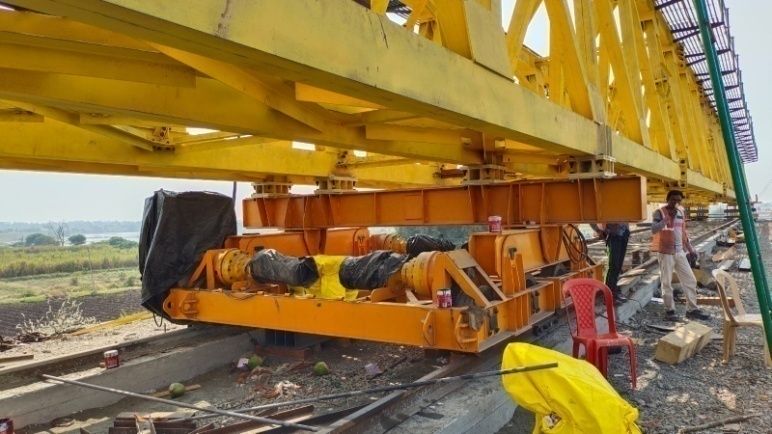

HEBENKRAFT designs and manufactures Auto Launching Trolleys for safe and efficient launching of pre-...
Transport Trolleys

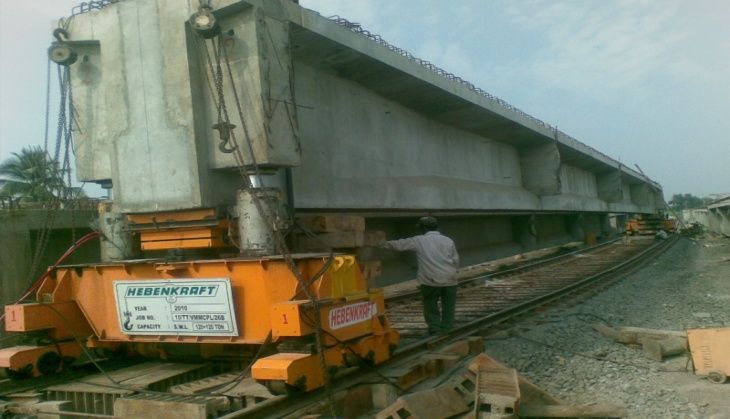

Transport trolleys are used for transporting the pre-cast girders or segments from the casting yard...
Transport Trolleys Type I
Concrete Mixer Truck carrying Transport TrolleysHEBENKRAFT has designed, manufactured and supplied c...
Goliath Gantry Cranes
Gantry Goliath Cranes for Infrastructure & Rail ProjectsHEBENKRAFT delivers high-performanc...
Fabricated Launching Truss
HEBENKRAFT designs, manufactures, and supplies Launching Systems for Pre-Cast Girders for infrastruc...
